| Models |
: |

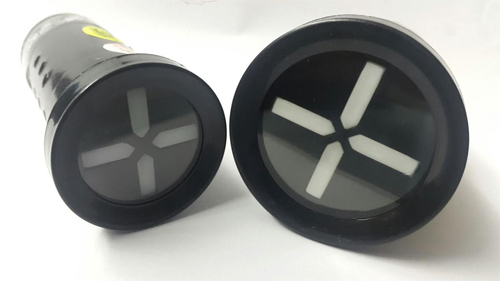

DAV-12-LED (36 mm dia.) and DAV-22-LED (48 mm dia.) |
| No. of Input Terminals |
: |
3 |
| |
|
Centre Terminal is Common & marked as 'C' : connect -ve DC supply. |
| |
|
Connect +ve to Terminal marked as '1' for Red colour indication |
| |
|
Connect +ve to Terminal marked as '2' for Green colour indication |
| |
|
When there is no power supply the Semaphore Indicators do not glow |
| Semaphore available for Rated Voltages |
: |
24V DC |
| |
|
30V DC |
| |
|
110V DC |
| |
|
120V DC |
| |
|
220V DC |
| |
|
250V DC |
| Operational Voltage |
: |
70% to 125% of Rated Voltage |
| Rated Current |
: |
12 mA maximum |
| Depth of Semaphore |
: |
55.5mm |
| Dielectric withstand voltage |
: |
2.5KV-1 minute |
| Durability / Reliability |
: |
Tested for 10,000 operations |
| Suitable for mounting Plate (panel) thickness |
: |
1 to 8mm |
