Export Type Test Terminal Block


Test Terminal Blocks (Export)

TEST TERMINAL BLOCK connected with Ammeters, Watt meter, Maximum Demand Indicators, Trivector Meters etc. enables site testing to be done without disturbing the panel wiring or meter connectors. The same block can be utilised for testing 3Ph 3 wire or 4 wire Meters.

The 'DAV' TEST TERMINAL BLOCK are designed for projection mounting suitable for front or back connection.
Potential coil terminal are shrouded and all barriers are moulded in base moulding which is insulated material. Barriers provide protection against flashover between terminals. Moulded shrouds are provided to protect the voltage terminals.

Technical Data
Voltage Rating
:
1100V
Current Rating
:
50 AMP continious at 50 C
Diameter of Entries
:
6mm

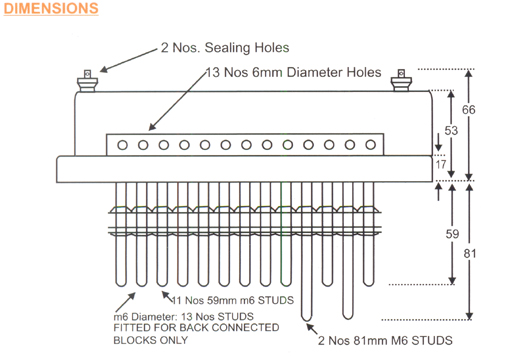

Mounting

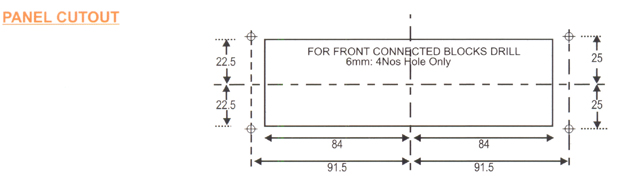

Two holes of 6mm diameter on opposite sides of the base are provided for panel fixing.


Types & Code No.

Test Terminal Block for Front connection, EXPT - 4.1 Test Terminal Block for Back connection, EXPT - 4.2
