Indicating Lamps, Led Lamp Holders, LED type Lamp, Digital Panel Meter, Mumbai, India



Indicating Lamps


22.5 MM Dia Lamp Holders With Metal Adaptors ( Bulb type as well as Led type )
Indicating Lamps

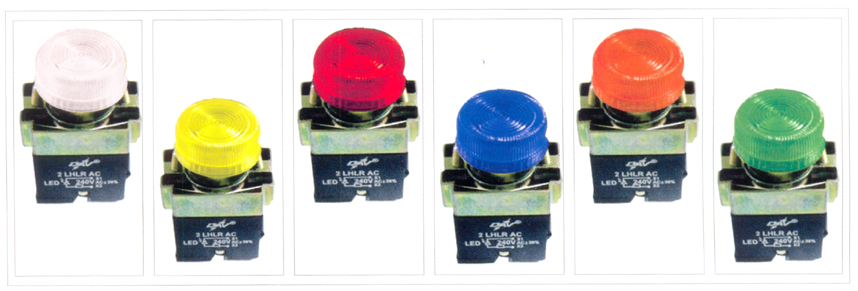

22.5 MM Dia Barrel Type Led Lamp Holders
Indicating Lamps

Salient Features Technical Specifications
Best illumination due to maximum luminous
Operating Voltage
:
24, 48, 110 & 230V AC & DC
LEDs. Suitable for standard voltage ranges
Power consumption
:
0.5 Watts at 230V AC
Non standard voltage ranges available on request.
Operating Temp.
:
Minus 4 to Plus 750 C
80% Energy Saving. Zero failure probality due to LED technology.
Colours available
:
Yellow, Red, Amber, Blue Green and White
Immune to vibration and shock resistance. Fits with 22.5mm standard cutouts. Low ( Leakage ) voltage glow protection. Tested and certified as per IS13947 ( Part 5 / Sec 1 ) : 1993.
Designated normal life time
:
1,00,000 burning hours.
Rugged, Long lasting & Economic.
Housing
:
Flames retardant Nylon glass filled provided with ribbed polycarbonate lens

Lens Protection
:
IP 65
Rated Insulation Voltage
:
600V
Insulation
:
above 50 Mega ohms
High Voltage Test
:
2500 Voltages for 1 min.
Termination
:
Totally enclosed / finger touch proof. Suitable for 2.5 Sqmm cable.


-------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------
